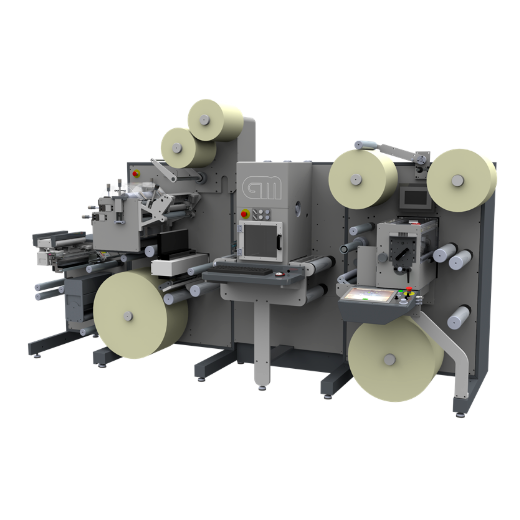

Compact laser finishing machine – GM LC330 COMPACT LASER

The GM LC330 is a compact, economical and fully digital laser finishing machine. Simply download the file from the prepress department and the laser module is ready.

The system can be equipped with an optional barcode reader for faster reloading of existing jobs. Laser power ranges from 100-400 watts (peak 400-1000 watts). It is possible to cut at different power levels on the same label.

The LC330 standard has laser die-cutting, slitting and double rewinding. The unit is prepared for flexo varnish, spot varnish, lamination, cold foil and automatic knife box.

The equipment comes on a standard 1m GM frame and is designed to fit any GM converting line with minor electrical and mechanical modifications. A typical configuration is flexo varnishing, laser cutting and rewinding, but more complex configurations are possible.
