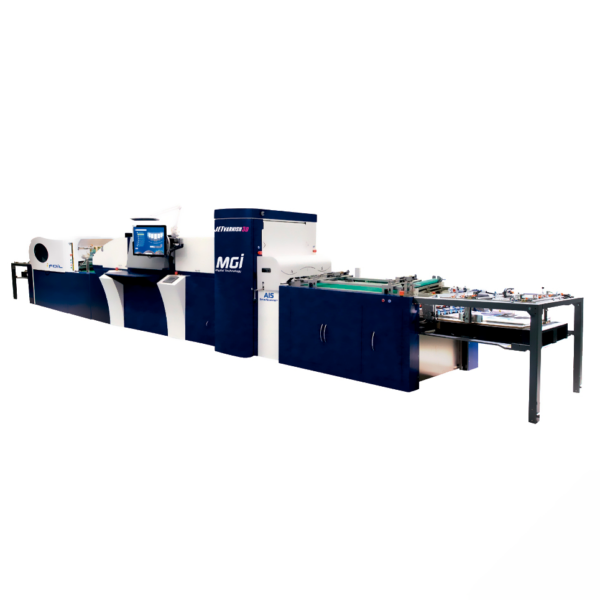

MGI JETvarnish 3D inkjet UV 2D / 3D and digital hot-foil coater

First digital equipment for UV varnishing with reserve, both in 2D and 3D, with a format up to 64 × 120 cm that uses last generation inkjet technology.
The JETvarnish 3D unit is ideal for short, medium and long runs, and is positioned as the benchmark for quality, flexibility and profitability in the graphic arts market.
JETvarnish 3D has a very fast start-up as it does not use plates or screens, does not generate waste, and produces between 1 and 3,000 sheets / hour without complications.
The JETvarnish 3D system accepts a wide range of media, with sheet widths ranging from 210 to 520mm and thicknesses from 135 to 600g / m2. If you add the visual impact of UV varnishing reserved for book covers, brochures, containers, folders, business cards ... the only thing that limits the possibilities of this equipment is the imagination. Allows varnishing with a gloss, ultra-gloss or satin finish.
The JETvarnish 3D unit's built-in UV curing system dries sheets “on the fly” via a conveyor belt, without the need for ozone or solvents. The sheets arrive completely dry in the high capacity stacker, allowing them to be handled immediately.
It's very easy to add sparse varnish to any project; just add a fifth color to the design, highlighting the areas where the reservation effects should be applied. After printing the document in four-color on the machine of your choice (digital, offset or flexo), load the fifth color into the integrated station of the JETvarnish 3D system.
MGI's unique inkjet technology ensures perfect results, from the first page to the last. The piezoelectric heads (drop-on-demand) allow to reproduce lines of only 0.3 mm or that occupy the entire width of the sheet (maximum width 515 mm).
Thanks to MGI's proprietary varnish formula, users can automatically switch between varnishing with or without reserve, without the need to clean equipment.

Categories: Hot-foil and digital varnish, Postpress and finishes

Technical Specifications - Varnishing

UV inkjet technology
• MGI’s exclusive inkjet engine technology.
• Drop-on-demand (Dod) inkjet application.
• Single-pass piezoelectric print heads.

2 lines of heads (16 inkjet heads in total)
• Flexible and scalable architecture.

Variable varnish thicknesses
Depending on the file and media used, the thickness of the coating can vary from the traditional flat UV mode of 3 to 200 microns to achieve an embossed 3D effect and a tactile finish.

Production speed
Up to 3,200 (1) B2 sheets per hour approx with 6 micron varnish effect.

Registry
Lateral registration guides motorized on the right and left. Automatic registration through a built-in scanner for real-time management of the entire sheet. No registration marks are required.

Supported paper formats
• Min.: 21×29.7 cm / 8.37×11.7''
• Max.: 52×105 cm / 20×42''

Media thickness
Height adjustment of motorized inkjet heads.
• Min.: 135 gsm.
• Max.: 600 gsm

Media compatibility
Improvement on most (2) laminated matte or glossy surfaces, with or without aqueous varnish, laminated paper, plastic, PVC and other varnished materials. 3D reserve varnishing directly on most digital prints (for example: MGI Meteor).

UV varnishes and yields
Several coating formulas available, one designed for 2D (flat coating) and one for 2D / 3D use. The JETvarnish 3D includes 2 reservoirs and 2 varnish circuits as standard allowing quick changeover between varnish types.
Both tanks have a large capacity (18 liters / 4.7 gallons). Instant tank change is possible during production without interruptions or waste.

Sheet Feeder
Approximately 4000 sheets at 135gsm.

Paper path
• Paper path 100% flat.
• Air suction system.
• Air emission system.
• Automatic double-fold detection.

Inline UV Dryer
Instant drying and curing through built-in UV lights.

Front End System
• Intuitive touchscreen management software controlled via a 27'' monitor.
Operator functions:
• Job cost calculator, image editor, queue and reprint management, camera and printhead settings.
• Controller of equipment configuration and technical data.
• 10/100/1000 BT Ethernet connection on RJ 45.

Technical Specifications - Hotfoil

IFOIL L
Application of the optional 100% digital hot stamping module.
Standard sheet format 52 × 105 cm (20 × 47 '').

Production speed
Up to 1200 (3) B2 sheets per hour approx (or up to 25m per minute approx - 65.6 feet per minute approx).

Films
Uses a variety (4) of commercially available hot foils. Film consumption optimization system.

Coils
Max diameter and length: + -30cm / 11.8 '' and from 400 to 2000 meters of film (1300 to 6500 feet).
Up to 5 simultaneous coils on the same axis (with a minimum of 10cm / 3.9 '' per coil)
2 cores available: 1 inch as standard and 3 inch optional.

Maximum surface:
The area of the hot rolling mill cannot exceed 51 × 104 cm (20.1 × 41 '').

Print:
The surface of the metallized film can be covered with a layer of lacquer or other foil.

Maintenance and Remote Technical Assistance
• New: Automated inkjet head cleaning and drying.
• Complete daily maintenance in less than 10 min.
• Most automated processes.
• Go from cold start to production in less than 15 min.
• Remote assistance and troubleshooting via included webcam (requires high-speed internet connection).

JETvarnish 3D + iFOIL Dimensions and Weight
7.5 x 1.6 x 1.83 meters (LxWxH)
Clarification: 1 meter on all sides.
± 1200 kg

Electrical requirements
JETvarnish 3D
400 volts (32A) - 50/60 Hz
IFOIL
400 volts (25A) - 50/60 Hz

Operating environment
Temperature: 18 to 30ºC / 64 to 86ºF
Relative humidity between 30 and 50%. (No condensation).

The default sheet size is B2 (52x74cm / 20 × 29 '') unless otherwise noted.
(1) The speed will vary depending on the printing parameter used.
(2) confirm support / toner / metallic film compatibility with MGI.
(3) the speed will vary depending on the printing parameter used.
(4) confirm support / toner / metallic film compatibility with MGI.
• Some product illustrations may include optional accessories.
• Specifications and accessories are based on information available at the time of publication and are subject to change without notice.
• OMC, SAE does not guarantee that the specifications mentioned are error-free.

Brand	MGI

More details

Why MGI JETvarnish 3D Technology Has Become The Nation's Leading Digital Beautification Technology

MGI's new 2D / 3D UV inkjet and hotfoild 100% digital coating technology, JETVarnish 3D, allows the generation of up to 12 different effects or finishes; 6 thanks to its selective and embossed varnish application (eg contrasting matt varnish-selective flat satin, textured effects combining different thicknesses or 3D varnish reliefs, 3D relief ...) and another 6 thanks to its hot stamping iFoil module (eg holograms, a wide variety of textured foils, metallic embossing ...); creating a completely differentiating visual and tactile experience with high added value never seen before.
Digital varnish technology is perfectly suited to a wide range of different applications, from books to exclusive business cards, high-end invitations, point of sale materials, packaging, labels ...
Four are the essential points for which commercial, packaging and label printers are betting on MGI as a reference provider in digital embellishment solutions.
First of all, to produce with a totally industrial solution or equipment, with a fully operational and proven technology, both for UV varnish and hot foil stamping. In addition, it is a versatile technology, capable of adapting to all materials and products, integrating perfectly into your production flow and with a high level of quality in both varnish and stamping. Finally, and very importantly, select a manufacturer with effective technical and customer service and an R&D department capable of meeting your needs, because this investment represents a strategic challenge for each and every one of the companies that have bet by them.
