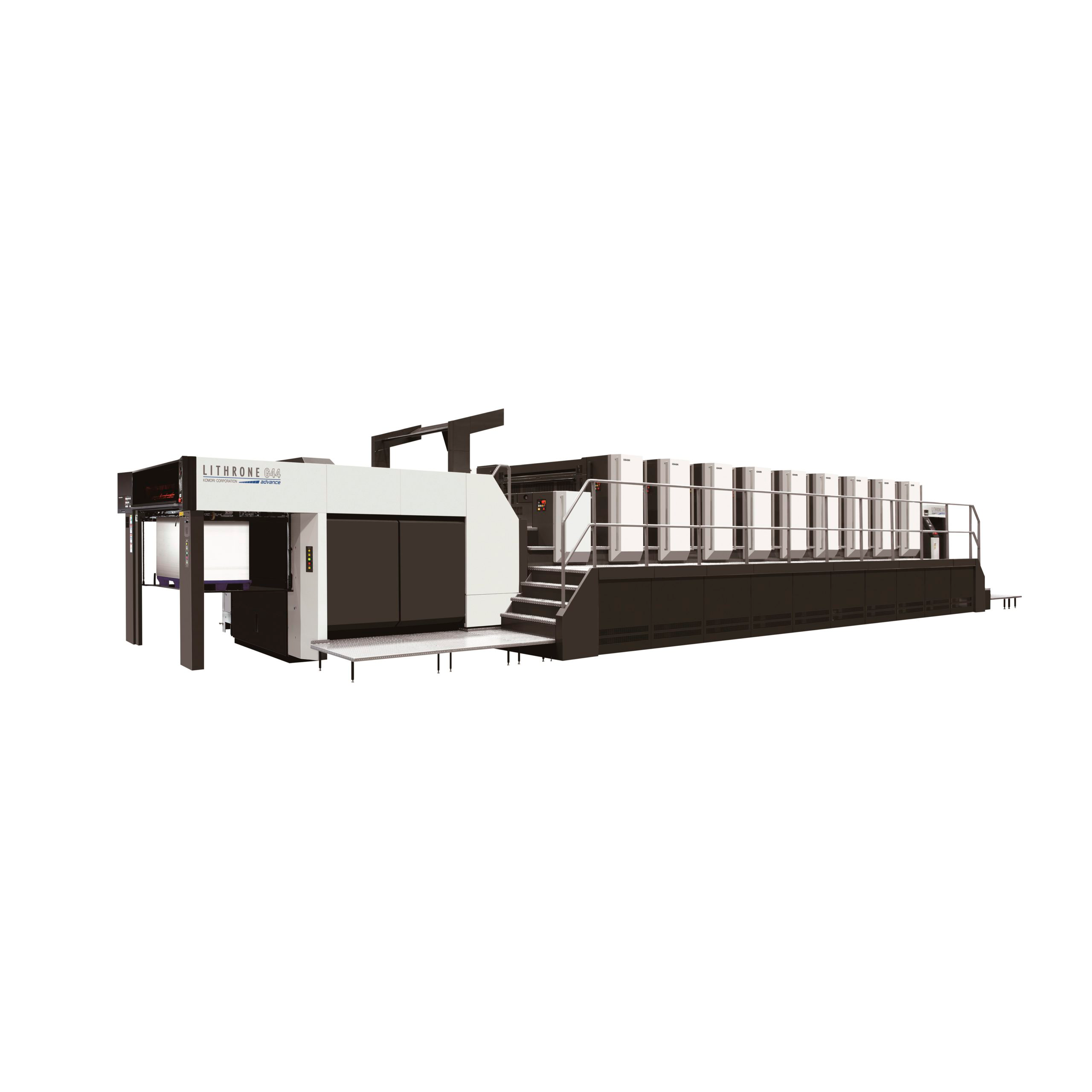

Komori G44 offset printing machine

Print quality and flexibility to create new print businesses. The latest generation Komori 44-inch machine offers the ability to create added value.

Packaging solutions
- The Lithrone G44 is equipped with many features that are effective for various types of packaging printing.
Long runs with thick supports
- High speed, automatic non-stop operation to handle long runs, offering high performance in high value-added packaging printing.
State-of-the-art quality control systems
- New control systems are essential to maintain and ensure excellent print quality on packaging.

Categories: Print, Offset

The Lithrone G Series models come equipped with the latest Komori technology. Now joining this series is the 44 inches. The powerful Lithrone G44.

With a maximum print speed of 15,000 pph and a substrate thickness range of 0.04–0.8 mm, it can cover a wide range of printing needs. Furthermore, the maximum sheet width of 840 x 1150 mm meets the requirements of the growing batch-run printing segment, as well as increasing the possibilities for different impositions. This and many other features make the Lithrone G44 a powerful new strategic press, ideal for developing new business and improving the bottom line.

Brand	Komori
Sectors	Packaging

More details

Control system

KHS-AI (Advanced Interface) is a productivity enhancement system that optimizes various presets through self-learning based on changes in the machine, environment, and media, and achieves high-precision startup.

In addition, KHS-AI ensures stable sheet entry and exit thanks to air presets that adapt to sheet size, thickness, paper type and grain direction.

Smart Sequence achieves a practically automated work sequence. Not only does the system make it easy to monitor jobs and manage the activity log and maintenance data, it is also equipped with a self-diagnostic function that helps prevent problems.

These features shorten changeover and make-up times, save resources and reduce machine downtime.

Special surfactant for ink rollers

In packaging printing, color changes are frequent in each task, as well as changes from dark colors to bright colors. Previously, ink cleaning sometimes took a long time to reduce color contamination when changing colors. Special surfactant for ink roller, rubber and print cylinder wash cycles minimizes color contamination by changing from dark colors, gold, silver, white, fluorescent and photoresist or UV colors to bright colors such as yellow. In addition, it optimizes cleaning work when changing colors and improves productivity.

Ink mist eliminator

This machine reduces the amount of ink mist generated in the inker that is dispersed outside the printing machine, as it absorbs and collects it with a special filter. This helps to reduce maintenance of the air conditioner and peripheral devices, as well as to decrease the need for cleaning maintenance of the printing machine.

Automatic Anilox Roll Changer

When varnish thickness is changed, the anilox rollers must also be changed. However, due to the weight of the rollers, changing them can require a great deal of time and maneuvering. The Komori Automatic Anilox Roll Changer automates the roll changing process. The unique structure of our drum unit allows the rollers to be changed and placed in printing position simultaneously, reducing operator workload and dramatically increasing the time required for changing rollers. If the varnish is not also changed, changing the rollers requires less than three minutes, allowing jobs to be processed continuously.

PDF comparator

Sensors to read the printed image and compare it with the data in the original PDF file. The system can be included in PDC-SX. In this way, the operator can look for characters that are surplus or missing in the initial phase of printing, thus avoiding production losses.

Sheet numbering system,

It lists each sheet in the feeder, and masking software *, which automatically creates inspection areas in advance from the die data, can be specified with PQA-S. This improves the quality control of packaging printing.
